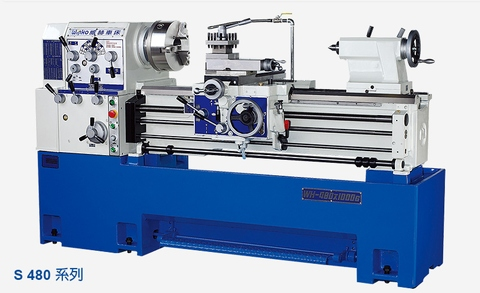

High speed precision lathe s480 series

s480 series

High speed precision lathe s480 series

CHARACTERISTICS:

■ Selective bed width:

S series: 300mm.

■ Varied spindle bore diameters:

S series: Ø58mm / Ø80mm (Option).

■ With FAG or SKF precision bearings installed on spindle, maximum cutting depth can be 8mm on 50mm diameter and best roundness 0.003mm (200mm long).

■ Equipped with plastic rear gears, shafts and gears inside headstock are well protected if crash should occur (S430 & S480 Series).

■ Thermal treated and precision ground alloy gears.

■ Universal gearbox for both imperial and metric thread-conversion table also attached.

■ Tracks of cross slide and bed are well lubricated with lubrication pump (manual).

■ Overload device to ensure safety when operating.

■ Wear-resistant phosphor bronze lead screw nuts.

■ Durable reservoir oil bath type cross slide (for S series).

■ Thermal treated Meehanite bed casting.

■ One-piece base for high rigidity and low vibration.

■ High-capacity coolant tank offers sufficient coolant output.

■ All series certified for CE.

SPECIFICATIONS：

S480 Series
Specifications / Model	S1922	S1930	S1940	S1960	S1990
Swing Over Bed	470 mm (18-1/2")
Swing Over Cross Slide	280 mm (11")
Center Height	235 mm (9-1/4")
Distance Between Centers	560 mm (22")	760 mm (30")	1000 mm (40")	1500 mm (60")	2200 mm (90")
Swing Over Gap	690 mm (27-1/8")
Width Of Bed	300 mm (11-4/5")
Spindle Nose	ASA D1 - 6 / D1 - 8 ( Opt. )
Spindle Bore	58 mm (2-1/4") / 80 mm (3") Opt. )
Taper of Spindle Bore	MT 6 / MT 7 Opt.
Range of Spindle Speed	20 ~ 2000 R.P.M. ( 12 steps )-spindle bore :58mm /40 ~ 2000 R.P.M. ( 12 steps )-spindle bore :80mm
Inch Threads Range	4 ~ 56 T.P.I.
Metric Threads Range	P 0.5 ~ P 7
Longitudinal Feeds Range	0.05 ~ 0.82 mm (0.002-0.032")
Cross Feeds Range	0.02 ~ 0.4 mm (0.001-0.0094")
Leadscrew Diameter	35 mm (1-1/3")
Leadscrew Pitch	4 TPI or 6 mm
Taper of Tail Center	MT 4
Tail Spindle Travel	150 mm (5-7/8")
Tail Spindle Diameter	68 mm (2-2/3")
Main Drive Motor	7.5HP (5.625KW) / 10HP (7.5KW) ( Opt. )
Coolant Pump	1/8 HP (0.1KW)
Compound Rest Travel	125 mm (4-7/8")
Cross Slide Travel	245 mm (9-2/3")
Machine Dimensions (cm)	165 x 81 x 122	189 x 81 x 122	215 x 81 x 122	265 x 81 x 122	342 x 81 x 122
Packing Dimension (cm)	182 x 95 x 168	200 x 95 x 168	228 x 95 x 168	279 x 95 x 168	355 x 95 x 168
Net Weight	1540	1720	1800	2075	2465
Gross Weight	1640	1820	1900	2225	2615

STANDARD ACCESSORIES

Tool Box 1pc
Centers 2pcs
Safety pin 1pc
Screw wrench for cutter setting 1pc
Back plate1pc
Coolant system 1set
4-way tool post 1set
Auto-feed stopper ring 1set
Center sleeve 1pc
Levelling pads 1set

OPTIONAL ACCESSORIES

3-jaw scroll chuck
4-jaw independent chuck
Face plate
Steady rest
Follow rest
Work light
4-position carriage stop
Micro carriage stop
Live centers
Rear cutter rest
Taper turning attachment
Rear splash guard
Chuck guard
American tool post
Driving plate
5C lever collect closer
Quick change tool post
Digital readouts
Hydraulic copying machine
Chip guard
Change gears for D.P and module thread
